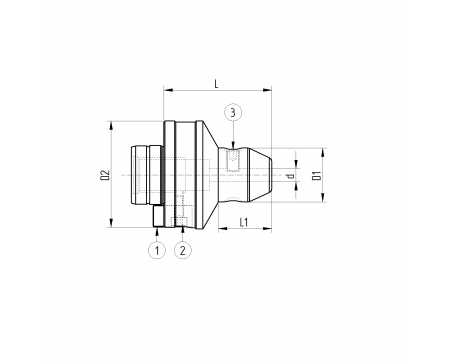

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940TSL01
  • TASSELLO 16X16X25
  • 1
  • 2
  • 110601601
  • VITE 8.8 TCEI M6X16 BRUN. UNI5931 ISO4762 A0502005
  • 1
  • 3
  • 101601602
  • GRANO P.COPPA M16X16 BRUNITO DIN916 UNI5929 ISO4029 15929016016B
  • 1
Direct purchase spare parts +

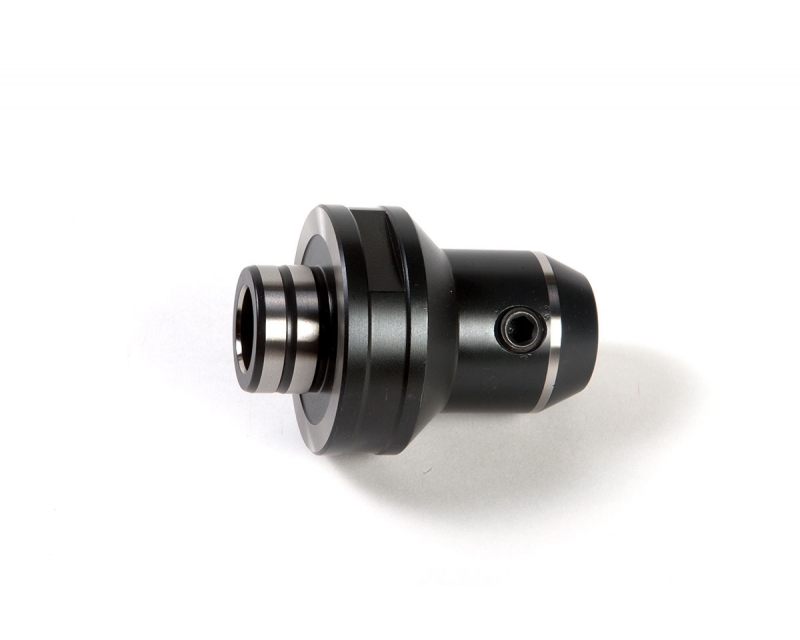

VL8WLD20

MOD. D80 WELDON TYPE D.20 H-70

Modular Adaptor For Weldon Toolholders - Accessories included

  • PRODUCT DETAILS

Data sheet

Typology
WLD - End Mill Holders Weldon Type (Standard)
D
20
d
20
D1
52
D2
80
L
70
L1
34
Weight (Kg)
1.7
