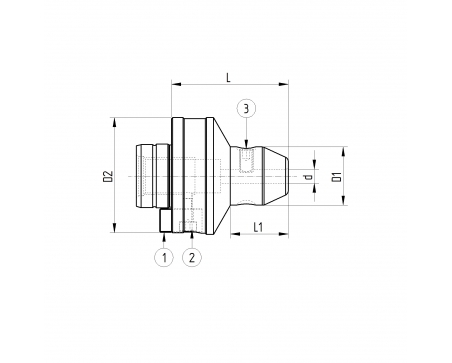

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940TSL06
  • TASSELLO 16X14X25
  • 1
  • 2
  • 110601201
  • VITE 8.8 TCEI M6X12 BRUN. UNI5931 ISO4762
  • 1
  • 3
  • 102002002
  • GRANO M20X2X20 BRUN A DISEGNO MATERIALE : AVPB
  • 2
Direct purchase spare parts +

VL6WLD40

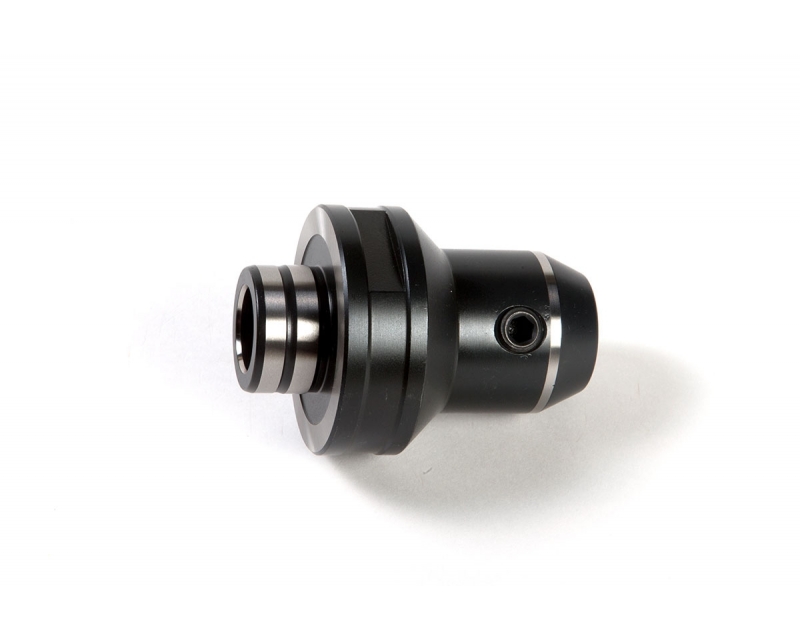

MOD. D63 WELDON TYPE D.40 H-90

Modular Adaptor For Weldon Toolholders - Accessories included

  • PRODUCT DETAILS

Data sheet

Typology
WLD - End Mill Holders Weldon Type (Standard)
DIN ISO
DIN1835B
D
40
d
40
D2
63
D3
80
L
90
L1
70
Weight (Kg)
1.76
